80 m Yacht

This time we present another innovative customer request to you.
A  floating pontoon for a 80 m yacht is to be built parallel to the quaywall.

The conditions on site are very challenging:

• Mooring Speed 0,3 knots (600t)
• Max. Wind Speed- 40 m/s
• Max. Current- 2,0 m/s
• Max. Water Level Difference – 1 m
• Max. Wave Height – 2 m
• No Breakwater!

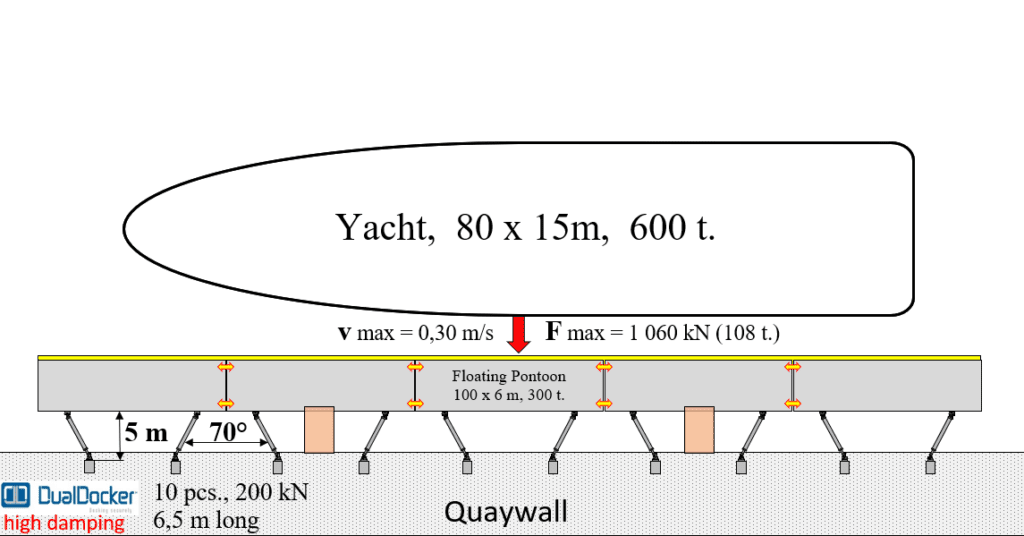

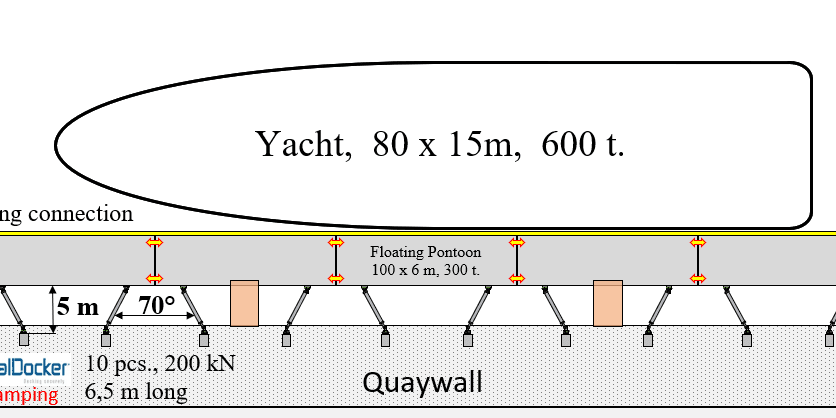

We worked out the above solution with the customer.

10 DualDocker (200 kN model) with a length of 6,5 m and extremely high damping way (500mm in Push-Direction, 300mm in Pull-Direction).

Conclusion

DualDocker is a jerkfree mooring system. This means that no additional (very high) dynamic forces are generated!

The floating dock and the mega yacht are almost motionless and calm in the wind and waves.

The highly damped DualDocker absorb the kinetic energy of the yacht and thereby reduce the retention forces by up to 90%!

DualDocker – Technology leader in mooring systems for floating houses and floating docks.
