45 m Yacht

This time we present another innovative customer request to you.

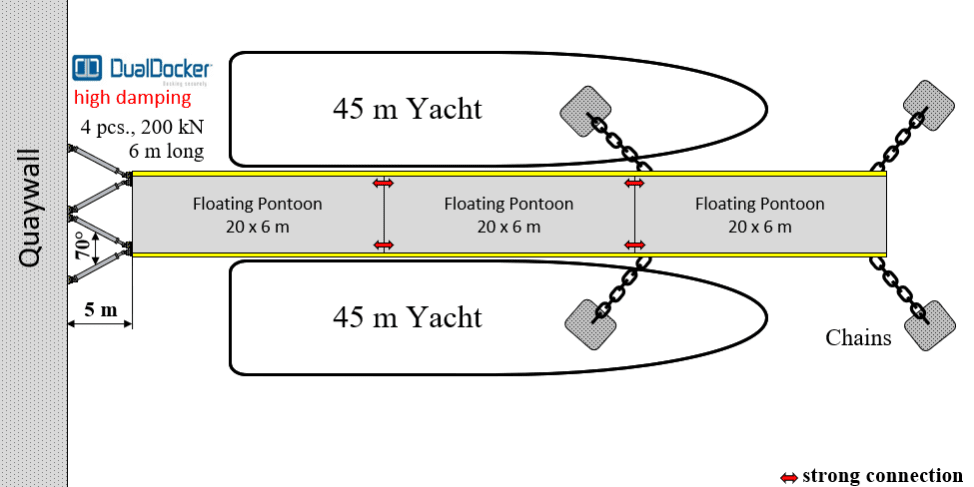

A perpendicular floating pontoon for two 45 m yachts is to be built.

The conditions on site are very demanding:

• Mooring Speed 0,5 knots (2x 350t)
• Max. Wind Speed- 35 m/s
• Max. Current- 1,0 m/s
• Max. Water Level Difference – 2,5 m
• Max. Wave Height- 1,5 m
• No Breakwater!

We worked out the above solution with the customer.

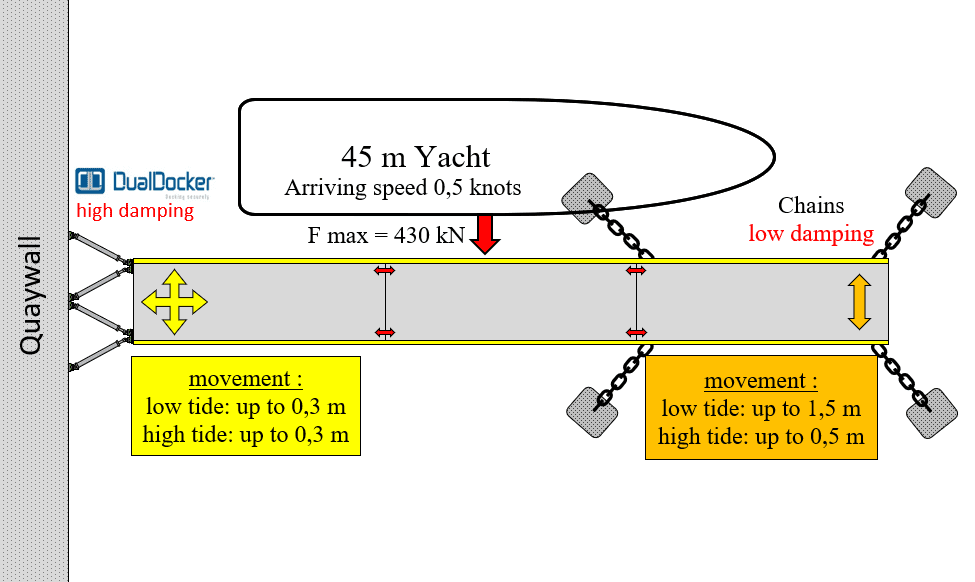

4 DualDocker (200 kN model) with extremely high damping way (±0,5m)
and a length of 6 m.

Conclusion

The DualDockers stabilize the floating dock perfectly on the land side. The maximum movement during storms and waves is 0.3 m – That means comfort & safety.

No more problems with the gangway during storms and waves.

The highly damped DualDocker absorb the kinetic energy of the yachts and thereby reduce the retention forces by up to 90%!

DualDocker – Technology leader in mooring systems for floating houses and floating docks.
